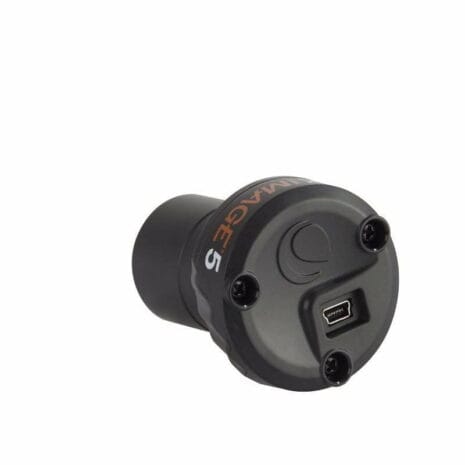

Celestron NexImage 5 Solar System Imager (5MP)
AED 1,385.04
- 5 Mega pixel color sensor with ON Semiconductor’s breakthrough low-noise CMOS imaging technology to dramatically reduce image noise levels
- Software automatically filters out video frames most affected by poor atmospheric conditions, leaving only the sharpest, clearest frames to be stacked and aligned into one high-quality image
- View and capture live video on your computer
- Manually adjust gain, contrast, exposure time, frame rate and color saturation using your PC
- Machined aluminum 1.25″ adapter barrel with C-threads for direct threaded connection to almost any telescope
In stock
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
- Free domestic shipping
- 7 day return policy on UAE orders.
- Discounted intl. shipping rates. Request a Quote
Celestron offers a wide array of high-quality, affordable, and user-friendly planetary imagers! Click here to learn more on how to choose an imager that’s right for you.
Capture high-resolution planetary, lunar and solar images with almost any telescope with the NexImage 5 Solar System Imager. Combined with the included software package, NexImage 5 brings out tremendous detail and produces images rivaling those taken with astronomical cameras costing hundreds more.

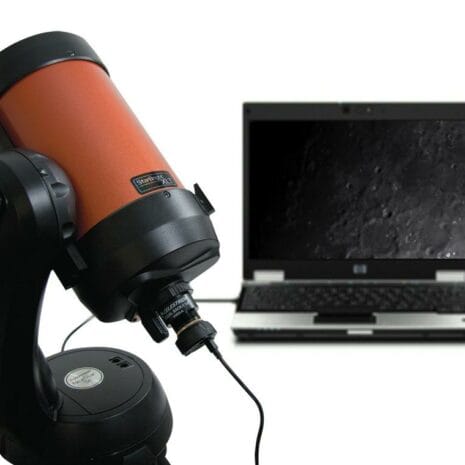

Simply point your telescope at the Moon or a planet and record a quick video. The included software analyzes each frame of video, throws away the fuzzy ones, and perfectly aligns the remaining images. The result is a bright, clear image with the maximum amount of color and detail. NexImage 5 is a great way to get started with astroimaging, especially if you live in a light-polluted area. If you can see the planet the sky, you can image it with NexImage 5!

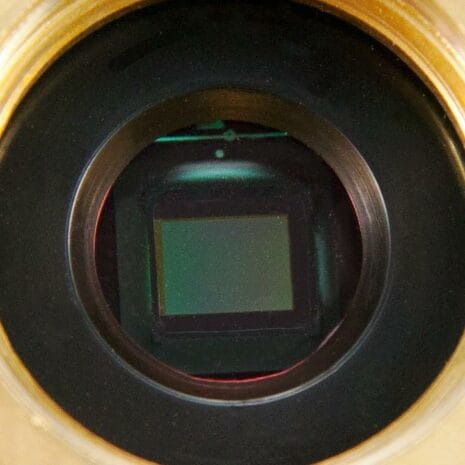

- 5 Mega pixel color sensor with ON Semiconductor’s breakthrough low-noise CMOS imaging technology to dramatically reduce image noise levels
- Small pixel sizes provide sub arc-second planetary detail with most telescopes
- View and capture live video on your computer
- Software automatically filters out video frames most affected by poor atmospheric conditions, leaving only the sharpest, clearest frames to be stacked and aligned into one high-quality image
- Camera control software allows you to manually change the gain, contrast, exposure time, frame rate and color saturation using your PC
- Selectable “region of interest” sub-framing
- Machined aluminum 1.25″ adapter barrel with C-threads for direct threaded connection to almost any telescope
- Can be used with standard 1.25” eyepiece filters
- Integrated IR-cut optical window
- 2×2 and 4×4 binning capability in color
- Progressive scan
- Includes USB 2.0 cable
| Color or Monochrome: | Color |
| Power Requirements: | Powered by USB |
| USB Cable: | USB 2.0, cable 5′ long |
| Camera Housing Construction: | ABS with aluminum connection ring |
| Optical Window: | IR Cutoff Filter |
| Pixel Size: | 2.2 micron square |
| A/D Conversion: | 12 bit |
| Imaging Sensor: | ON Semi MT9P031 CMOS |
| Camera Resolution (in Pixels): | 2592 x 1944 |
| Total Number of Pixels: | 5.0 MP |
| Mounting: | 1.25″ barrel and C-thread |
| Sensor Size: | 5.7mm x 4.28mm (0.22″ x 0.16″) |
| Shutter: | Electronic Rolling Shutter |
| Software Compatibility: | iCap | IC Capture | DirectShow |
| Operating Environment: | -22°F to 158°F (-30°C to 70°C) |
| Sub-Framing: | Hardware Selectable |
| Exposure Range: | 0.0001 to 30 seconds |
| Frames per second: | 6.23 to 52.37 at the lowest resolution, 0.71 to 5.99 at the highest resolution |
| Back Focus Distance: | 13.1mm with nosepiece | 10.6mm without nosepiece |
| Recommended/Best Usage: | Getting started in lunar, solar, and planetary imaging |
| Weight: | 2.0 oz (57 g) |
| Included Items: | NexImage 5 camera body | 1.25″ nosepiece | Software CD| USB cable | Instruction manual |
| Weight | 0.23 kg |
|---|---|
| Dimensions | 15.5 × 14 × 6.5 cm |
